Wire-cut EDM

AL series “i Groove+ Edition”

AL400P "i Groove + Edition"
detail AL400P

Axis stroke X×Y×Z (mm): 400 x 300 x 250
Max. weight of workpiece（During flushing machining）（kg）: 500
Wire electrode diameter (mm): 0.05 ～ 0.3
Machine tool dimensions W x D x H (mm): 2190 x 2605 x 2230

AL600P "i Groove + Edition"
detail AL600P

Axis stroke X×Y×Z (mm): 600 x 400 x 350
Max. weight of workpiece（During flushing machining）（kg）: 1000
Wire electrode diameter (mm): 0.05 ～ 0.3
Machine tool dimensions W x D x H (mm): 2575 x 2960 x 2345

AL400G "i Groove + Edition"
detail AL400G

Axis stroke X×Y×Z (mm): 400 x 300 x 250
Max. weight of workpiece（During flushing machining）（kg）: 500
Wire electrode diameter (mm): 0.05 ～ 0.3
Machine tool dimensions W x D x H (mm): 2190 x 2590 x 2230

AL600G "i Groove + Edition"
detail AL600G

Axis stroke X×Y×Z (mm): 600 x 400 x 350
Max. weight of workpiece（During flushing machining）（kg）: 1000
Wire electrode diameter (mm): 0.05 ～ 0.3
Machine tool dimensions W x D x H (mm): 2575 x 2945 x 2345

ALN400G "i Groove + Edition"
detail ALN400G

Axis stroke X×Y×Z (mm): 400 x 300 x 250
Max. weight of workpiece（During flushing machining）（kg）: 500
Wire electrode diameter (mm): 0.05 ～ 0.3
Machine tool dimensions W x D x H (mm): 2190 x 2425 x 2205

ALN600G "i Groove + Edition"
detail ALN600G

Axis stroke X×Y×Z (mm): 600 x 400 x 350
Max. weight of workpiece（During flushing machining）（kg）: 1000
Wire electrode diameter (mm): 0.05 ～ 0.3
Machine tool dimensions W x D x H (mm): 2525 x 2735 x 2295

AL series “i Groove Edition”

ALN400Q "i Groove Edition"
detail ALN400Q

Axis stroke X×Y×Z (mm): 400 x 300 x 250
Max. weight of workpiece（During flushing machining）（kg）: 500
Wire electrode diameter (mm): 0.1 ～ 0.3
Machine tool dimensions W x D x H (mm): 2190 x 2425 x 2205

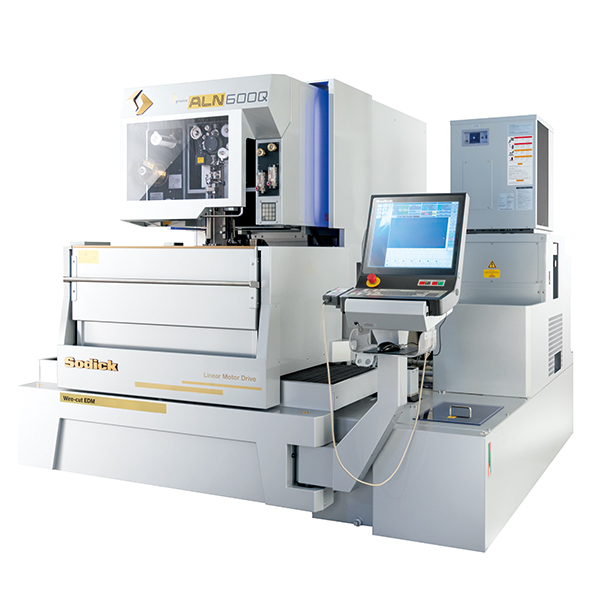

ALN600Q "i Groove Edition"
detail ALN600Q

Axis stroke X×Y×Z (mm): 600 x 400 x 350
Max. weight of workpiece（During flushing machining）（kg）: 1000
Wire electrode diameter (mm): 0.1 ～ 0.3
Machine tool dimensions W x D x H (mm): 2525 x 2760 x 2295

AL Series

AL800P
detail AL800P

Axis stroke X×Y×Z (mm): 800 x 600 x 250
Max. weight of workpiece（During flushing machining）（kg）: 1500
Wire electrode diameter (mm): 0.1 ～ 0.3
Machine tool dimensions W x D x H (mm): 3300 x 3650 x 2415

AL800G
detail AL800G

Axis stroke X×Y×Z (mm): 800 x 600 x 500
Max. weight of workpiece（During flushing machining）（kg）: 3000
Wire electrode diameter (mm): 0.1 ～ 0.3
Machine tool dimensions W x D x H (mm): 3395 x 3640 x 2780

ALN800G
detail ALN800G

Axis stroke X×Y×Z (mm): 800 x 600 x 500
Max. weight of workpiece（During flushing machining）（kg）: 3000
Wire electrode diameter (mm): 0.1 ～ 0.3
Machine tool dimensions W x D x H (mm): 3310 x 3360 x 2695

VN Series

AQ Series

AQ750L
detail AQ750L

Axis stroke X×Y×Z (mm): 750 x 500 x 400
Max. weight of workpiece（During flushing machining）（kg）: 1500
Wire electrode diameter (mm): 0.15 ～ 0.33
Machine tool dimensions W x D x H (mm): 2100 x 2800 x 2350

AQ900L
detail AQ900L

Axis stroke X×Y×Z (mm): 900 x 600 x 400
Max. weight of workpiece（During flushing machining）（kg）: 2000
Wire electrode diameter (mm): 0.15 ～ 0.33
Machine tool dimensions W x D x H (mm): 2380 x 3150 x 2395

AQ1200L
detail AQ1200L

Axis stroke X×Y×Z (mm): 1200 x 800 x 400
Max. weight of workpiece（During flushing machining）（kg）: 4000
Wire electrode diameter (mm): 0.15 ～ 0.33
Machine tool dimensions W x D x H (mm): 4100 x 3870 x 2490

AQ1500L
detail AQ1500L

Axis stroke X×Y×Z (mm): 1500 x 1000 x 600
Max. weight of workpiece（During flushing machining）（kg）: 8000
Wire electrode diameter (mm): 0.15 ～ 0.33
Machine tool dimensions W x D x H (mm): 5600 x 4435 x 2930

AP Series

AP250L(oil)
detail

Axis stroke X×Y×Z (mm): 250 x 150 x 120
Max. weight of workpiece（During flushing machining）（kg）: 80
Wire electrode diameter (mm): 0.03 ～ 0.2
Machine tool dimensions W x D x H (mm): 1860 x 2515 x 2105

AP350L(oil)
detail

Axis stroke X×Y×Z (mm): 350 x 350 x 120
Wire electrode diameter (mm): 0.05 ～ 0.25
Machine tool dimensions W x D x H (mm): 1985 x 2095 x 2160

AP450L(oil)
detail

Axis stroke X×Y×Z (mm): 450 x 300 x 120
Max. weight of workpiece（During flushing machining）（kg）: 100
Wire electrode diameter (mm): 0.05 ～ 0.25
Machine tool dimensions W x D x H (mm): 2185 x 2015 x 2160

AP650L(oil)
detail

Axis stroke X×Y×Z (mm): 650 x 450 x 120
Max. weight of workpiece（During flushing machining）（kg）: 200
Wire electrode diameter (mm): 0.05 ～ 0.3
Machine tool dimensions W x D x H (mm): 2470 x 1990 x 2175
