Neo Mazar Award
Achieving unmanned operation of adding and stirring seasoning liquid, etc. in the pre-cooked noodle manufacturing process (which have conventionally been manual tasks).
Capable of handling many different variations of noodles, and different seasoning liquid volume and types.
＜Application＞ Spaghetti, Fried Chinese Noodles, Fried Udon
Unmanned automatic production system by combining Sodick "Neo Mazar" and "Auto Boiling Machine" to handle up to adding noodle-loosening oil and seasoning liquid without human involvement.
Exterior view picture
Main Features
- (1)Drastically reduces food loss by extending freshness
- By reducing the number of manual processes, the risk of contamination with bacteria and foreign matters is reduced.
This makes it possible to extend the freshness of cooked noodle products such as pasta, thereby contributing to the reduction of food loss. - (2)Labor Saving to help with labor shortages
- First in the industry! (According to Sodick)
Adds and stirs seasoning liquids to each individual meal portion.
Automatically adds and evenly stirs multiple oils like pasta sauce for individual meals and supplies them to trays. By combining Sodick's individual meal measuring machine, manual measuring can be omitted compared to conventional batch production. - (3) Excellent Cleanability
- A special coating on the inside of the cups and incorporation of a boiling water washing unit with a shower nozzle enable automatic cleaning of the inside of the cups.
In addition, the machine is fully waterproof as it is completely made of stainless steel, making cleaning very easy.

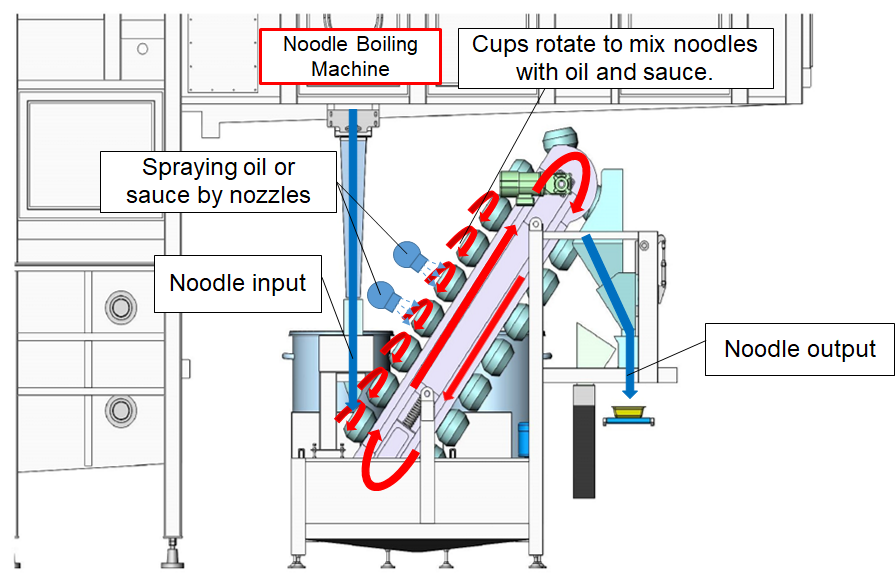

"Neo Mazar" Feature Description
Sodick's unique "Non-contact magnetic drive" cup rotation
Complete separation of cups and mechanical structures from motors and electrical components by using Sodick's unique "Non-contact Magnetic Drive Transmission" (magnets in-house produced by Sodick) for rotating cups.
Enlarged Picture of Cups
受賞
- Sodick won the Machine & Robot Parts Award of the 19th "Cho" Monodzukuri Parts Award 2022 (Sponsored by Monodzukuri Nippon Conference, Nikkan Kogyo Shimbun, Ltd.)
- Neo Mazar ranked in Third Place in the Business Category of the 33rd Naming Award Selected by Readers 2023 (Sponsored by Nikkan Kogyo Shimbun, Ltd.)
