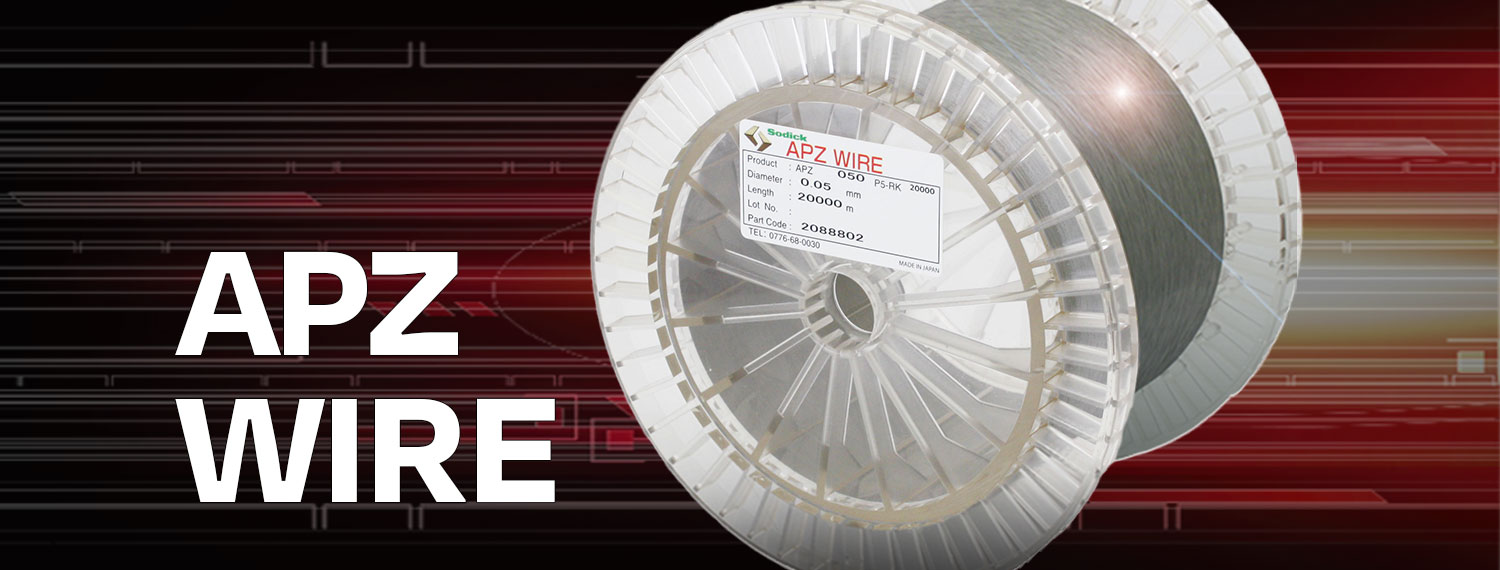

APZ Wire
Wire for high precision machining
Higher speed with the same processing accuracy as AP wire.
Features
- Zinc coated
- Piano wire is used with special zinc coat applied to the surface. It has approximately double tension strength than of hard brass wire. Machining performance by thin wire than brass wire. It is also ideal for precision R works and slits.
- Improved machining speed
- Zinc coated wire enhances electro-discharge power.
Machining speed in "oil model" machining is 30-80% higher than the AP Wires. - Straightness
- Same AWT as AP wire.
- Surface finishing
- Same quality but faster than AP wire.
- Low cost
- More cost-efficient than tungsten wires.
Specifications
※You can see the entire Directors and Audit & Supervisori Board Membersable by scrolling horizontally.
| Diameter Tolerance (mm) | +0, -0.002 |
|---|---|
| Tensile (N/mm2) | > 1900 |
| Cross section |  |
Product Line-up
※You can see the entire Directors and Audit & Supervisori Board Membersable by scrolling horizontally.
| Order No. | Wire Diameter | Length | Product name | Spool | Qty / Box | ||
|---|---|---|---|---|---|---|---|
| (φmm) | (in) | (m) | (ft) | ||||
| J24902A | 0.03 | 0.0012 | 5,000 | 16,400 | APZ 030 P5RK-5000 | P5-RK | 1 |
| 2088798 | 0.04 | 0.0016 | 5,000 | 16,400 | APZ 040 P5RK-5000 | P5-RK | 1 |
| 2088799 | 10,000 | 32,800 | APZ 040 P5RK-10000 | P5-RK | 1 | ||
| 2088800 | 0.05 | 0.0020 | 5,000 | 16,400 | APZ 050 P5RK-5000 | P5-RK | 1 |
| 2088801 | 10,000 | 32,800 | APZ 050 P5RK-10000 | P5-RK | 1 | ||
| 2088802 | 20,000 | 65,600 | APZ 050 P5RK-20000 | P5-RK | 1 | ||
| J04653A | 40,000 | 131,200 | APZ 050 P5RK-40000 | P5-RK | 1 | ||
| 2088803 | 0.07 | 0.0028 | 5,000 | 16,400 | APZ 070 P5RK-5000 | P5-RK | 1 |
| 2088804 | 10,000 | 32,800 | APZ 070 P5RK-10000 | P5-RK | 1 | ||
| 2088805 | 20,000 | 65,600 | APZ 070 P5RK-20000 | P5-RK | 1 | ||
| J04654A | 40,000 | 131,200 | APZ 070 P5RK-40000 | P5-RK | 1 | ||
| 2088806 | 0.10 | 0.0039 | 5,000 | 16,400 | APZ 100 P5RK-5000 | P5-RK | 1 |
| 2088807 | 10,000 | 32,800 | APZ 100 P5RK-10000 | P5-RK | 1 | ||
| 2088808 | 20,000 | 65,600 | APZ 100 P5RK-20000 | P5-RK | 1 | ||
- Please order by box.
- Contact your nearest Sodick for other sizes.
Contact your nearest Sodick for other sizes.
