Wire Guide 87-3 (COLOR)

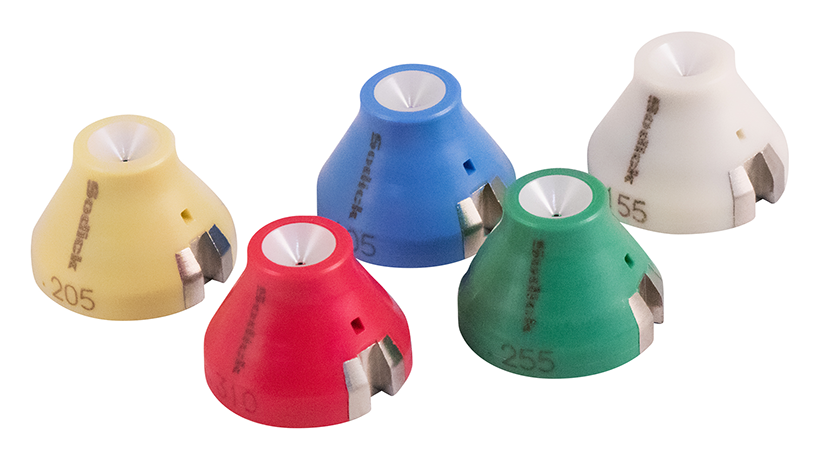

Wire Guide (Diamond) 87-3 Color
87-3 Color is used as a lower wire guide on most Sodick machines.
Color variation of the guides are easily to distinguish the size of the wire guide.
Applicable for all types including FJ-AWT machines.
Features
- Corrosion-resistant resin
- Exterior part is made of resin which prevents electrical corrosion.
- Easy to confirm
- Different colors for wires diameter can easily be identified.
Specifications
Product Line-up
※You can see the entire Directors and Audit & Supervisori Board Membersable by scrolling horizontally.
| Order No. | Electrode Diameter (φmm) |
Diameter | Color | |
|---|---|---|---|---|
| (φmm) | (φin) | |||
| J03638A | 0.10 | 0.105 | 0.0041 |  |
| J03639A | 0.110 | 0.0043 | ||
| J03640A | 0.120 | 0.0047 | ||
| J03641A | 0.15 | 0.155 | 0.0061 |  |
| J03642A | 0.160 | 0.0063 | ||
| J03643A | 0.170 | 0.0067 | ||
| J03644A | 0.20 | 0.205 | 0.0081 |  |
| J03645A | 0.210 | 0.0083 | ||
| J03646A | 0.220 | 0.0087 | ||
| J03647A | 0.25 | 0.255 | 0.0100 |  |
| J03648A | 0.260 | 0.0102 | ||
| J03649A | 0.270 | 0.0106 | ||
| J03650A | 0.30 | 0.305 | 0.0120 |  |
| J03651A | 0.310 | 0.0122 | ||
| J03652A | 0.320 | 0.0126 | ||
Contact your nearest Sodick for other sizes.
