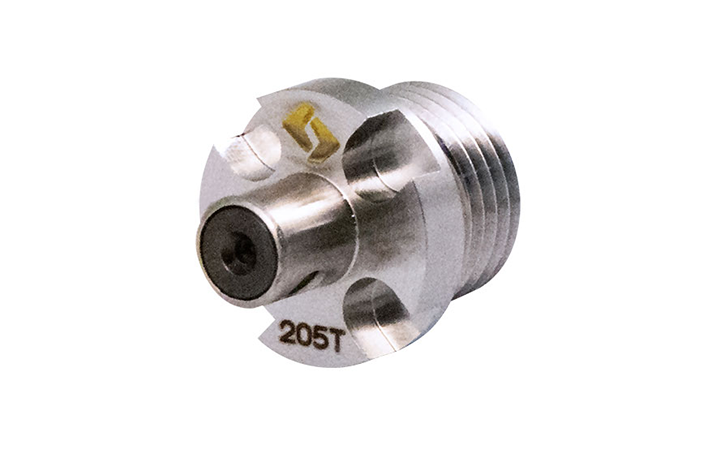

Wire Guide AQ-1U (T)
Special guide for FJ AWT Type A / Type P
For AL Series (FJ Wire Guide Type A), AP Series (FJ Guide Type P)
Compatible with high-speed FJ-AWT. Improved long life performance by using diamond on the inner 2 points to hold the wire electrode.
Applicable machines
- AL Series / AP250L(#C374-, #T057-) / AP350L / AP450L(#J785-) / AP600L(#J016-)
Features
- Compatible with FJ AWT Type A / Type P and lead high threading ratio
- AL series adopting high-speed automatic threading device (FJ-AWT) is compatible with FJ AWT Type A / Type P.
Round type wire guide which leads high threading ratio. - Improve machining reproducibility, stablity and maintainability
- Double guide improves automatic threading rate and stabilizes accuracy. Diamond is used on sub-guides which increase hardness.
Specifications
Product Line-up
※You can see the entire Directors and Audit & Supervisori Board Membersable by scrolling horizontally.
| Order No. | Electrode Diameter (φmm) |
Diameter | |
|---|---|---|---|
| (φmm) | (φin) | ||
| J25270A | 0.03 | 0.040 | 0.0016 |
| J25272A | 0.05 | 0.060 | 0.0024 |
| J25274A | 0.07 | 0.080 | 0.0031 |
| J17101A | 0.10 | 0.105 | 0.0041 |
| J17102A | 0.110 | 0.0043 | |
| J17104A | 0.15 | 0.155 | 0.0061 |
| J17105A | 0.160 | 0.0063 | |
| J17107A | 0.20 | 0.205 | 0.0081 |
| J17108A | 0.210 | 0.0083 | |
| J17110A | 0.25 | 0.255 | 0.0100 |
| J17111A | 0.260 | 0.0102 | |
| J17114A | 0.30 | 0.310 | 0.0122 |
Contact your nearest Sodick for other sizes.
