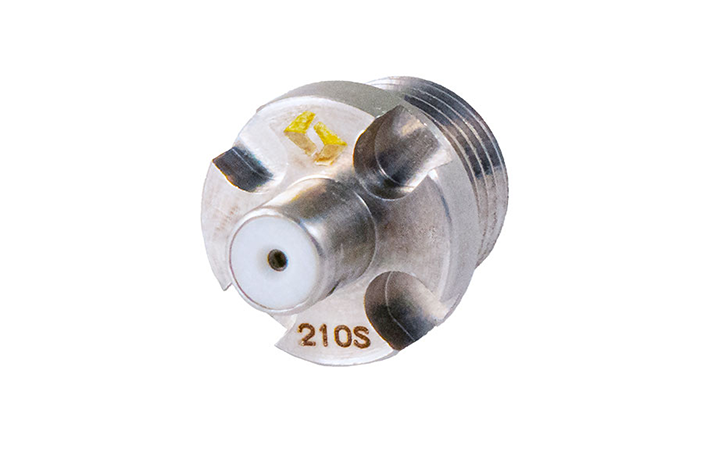

Wire Guide AQ-1U (S)
Special guide for SJ AWT Option 0 Type
AQ-1U (S) is a single Diamond Type for VL・AG・AQ machines with SJ-AWT.
Applicable "SJ-AWT "0" option, various diameters are available to achieve simple yet high threading rates.
Applicable machines
- VL Series、AD325L / SL・AG・AQ・AP Series ・ Wire Diameter for under D0.07
Features
- Special guide for SJ AWT Option 0 Type
- SJ-Single diamond developed for SJ-AWT machines.
- Can be used for FJ-AWT
- Applicable for FJ-AWT high-speed automatic threading. Also can be used for wire diameters under D0.07 sizes.
Specifications
Product Line-up
※You can see the entire Directors and Audit & Supervisori Board Membersable by scrolling horizontally.
| Order No. | Electrode Diameter (φmm) |
Diameter | |
|---|---|---|---|
| (φmm) | (φin) | ||
| 3110336 | 0.05 | 0.060 | 0.0024 |
| 118642A | 0.06 | 0.070 | 0.0028 |
| 3110760 | 0.07 | 0.080 | 0.0031 |
| 118762A | 0.10 | 0.110 | 0.0043 |
| 118745A | 0.15 | 0.155 | 0.0061 |
| 118758A | 0.160 | 0.0063 | |
| 118725 | 0.20 | 0.205 | 0.0081 |
| 118759A | 0.210 | 0.0083 | |
| 118726 | 0.25 | 0.255 | 0.0100 |
| 118760A | 0.260 | 0.0102 | |
| 118727 | 0.30 | 0.310 | 0.0122 |
Contact your nearest Sodick for other sizes.
