CIP Automatic Noodle Boiling Machine

(1) No need to worry about surrounding equipment

All processes from boiling to washing and cooling with water are inline, so the all-important noodle products are protected from contamination.

(2) Hygienic dry environment without contaminating the surroundings.

The high-pressure cleaning system does not contaminate the surroundings and maintains a hygienic, dry environment inside the factory.

(3) High cooling efficiency

The cooling zone is sealed, so it is not susceptible to influences from the environment and cooling efficiency is improved.

(4) Advanced cleaning process

All steps from draining water to pre-washing to circulation cleaning to rinsing and refilling with water is fully automated. Next production batch can be started without waiting for cleaning to finish.

(5) Simple CIP touch panel screen

In addition to "fully automatic", "semi automatic" or "manual" cleaning can also be selected on the touch panel setting screen, and fine adjustments can be made according to the level of contamination, the timing of switching between products, and other factors.

(6) Highly effective CIP cleaning

"Circulation cleaning" that combines jet-washing, detergent and heat energy washes away stubborn insoluble protein and starch contamination.

Cleaning Process in CIP Fully Automatic Noodle Boiling Machine

CIP leaves no part of the machine uncleaned and allows production under excellent conditions!

Introducing the「New」CIP with Enhanced Cleaning Power in the noodle transfer section

Improved Cleaning Power in Transfer Section

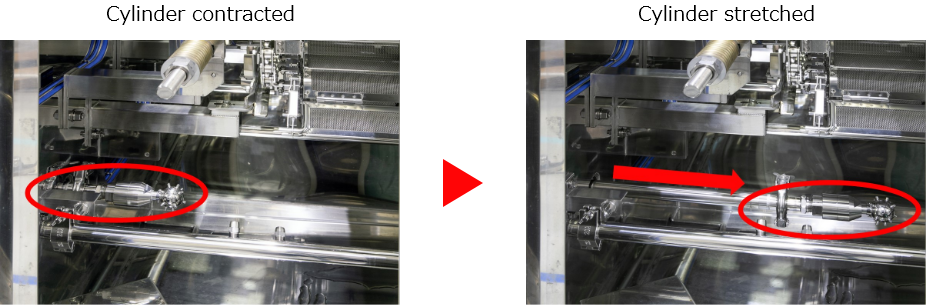

By adopting moving nozzles in the most contaminated boiling tank transfer section, cleaning shower balls move their positions for cleaning.

⇒The cleaning range is expanded and cleaning performance is very much improved compared to the current CIP.

Cleaning effect of CIP with enhanced cleaning power for transfer section (sprocket section)
