Electrodes for Small Hole EDM
Consistent quality controlled
Excellent straightness without variation
We provide high quality products.
In-house manufactured by thorough quality controlled system enables us to provide pipe electrodes with excellent straightness without variation.
Specifications
Table of Pipe Electrodes for Small Hole EDM

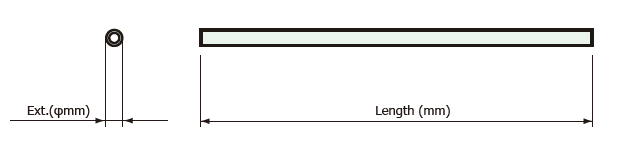

(External Diameter φ0.05-10)
※You can see the entire Directors and Audit & Supervisori Board Membersable by scrolling horizontally.
| Material | Type of Electrode | Product Name | Dimensions | |
|---|---|---|---|---|
| Ext.(φmm) | Length(mm) | |||
| Copper (Cu) |
Single Hole | Copper Pipe | 0.1-10.0 | 200/300 |
| 2-Hole | KIC Pipe(N) | 0.4-3.0 | 300/400 | |
| 8-Tube | KIC Pipe(8) | 2.1-6.0 | 300 | |
| Stepped Pipe | KIC Pipe(BN) | 0.08-0.50 | 250 | |
| Copper Tungsten(CuW)※ | Single Hole | KIC Pipe CUW | 0.15-2.9 | 200-250 |
| Copper Tungsten(CuW) | Single Hole | Brass Pipe | 0.3-3.0 | 300/400 |
| 2-Hole | Brass Pipe(N) | 0.4-2.0 | 300/400 | |
| 8-Tube | Brass Pipe(8) | 2.1-3.0 | 300 | |
- Copper pipe jointly developed by Sumitomo Electric and Sodick (Sumitomo Electric product name: ST Pipe).
Length varies according to external diameter.

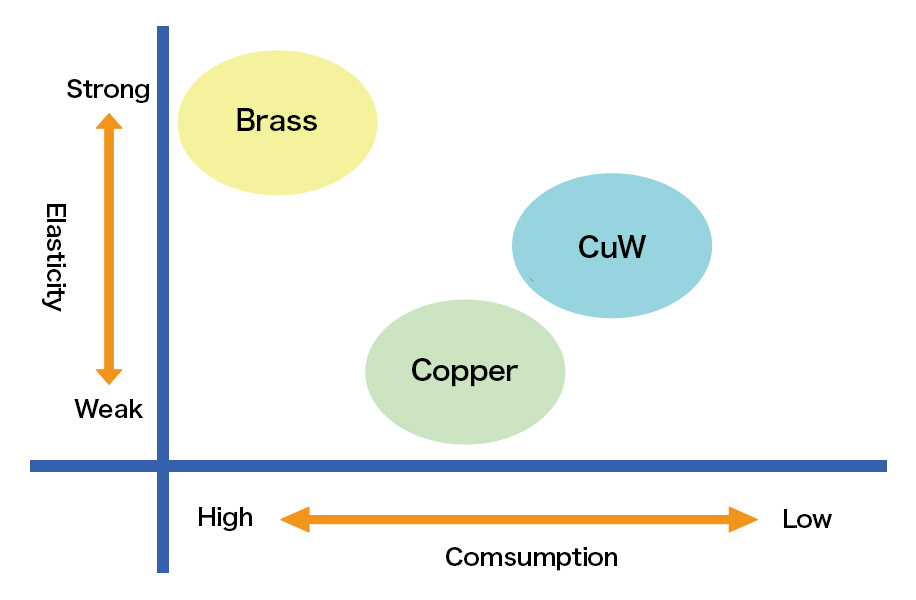

Comparison table by different materal of the pipes
- Brass:
- Easy to handle with its flexibility. Pipe may consume faster depending on the material of the workpiece.
- Copper:
- Copper is most commonly used. Pipes and coreless types are available. Economical and sufficient for deep hole drilling and continuous machining.
- Copper Tungsten:
- For precision and carbide machining.
Types
※You can see the entire Directors and Audit & Supervisori Board Membersable by scrolling horizontally.

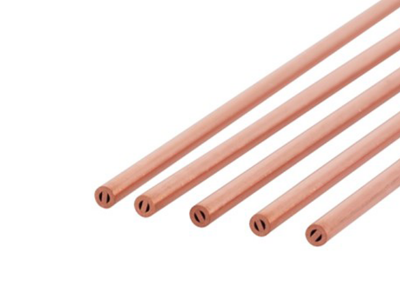

| Type of Electrode | Cross-section | Appearance |
|---|---|---|
| Single Hole |  |
 |
| 2-Hole |  |
|
| 8-Tube |  |
|
| Stepped Pipe |  |
 |
