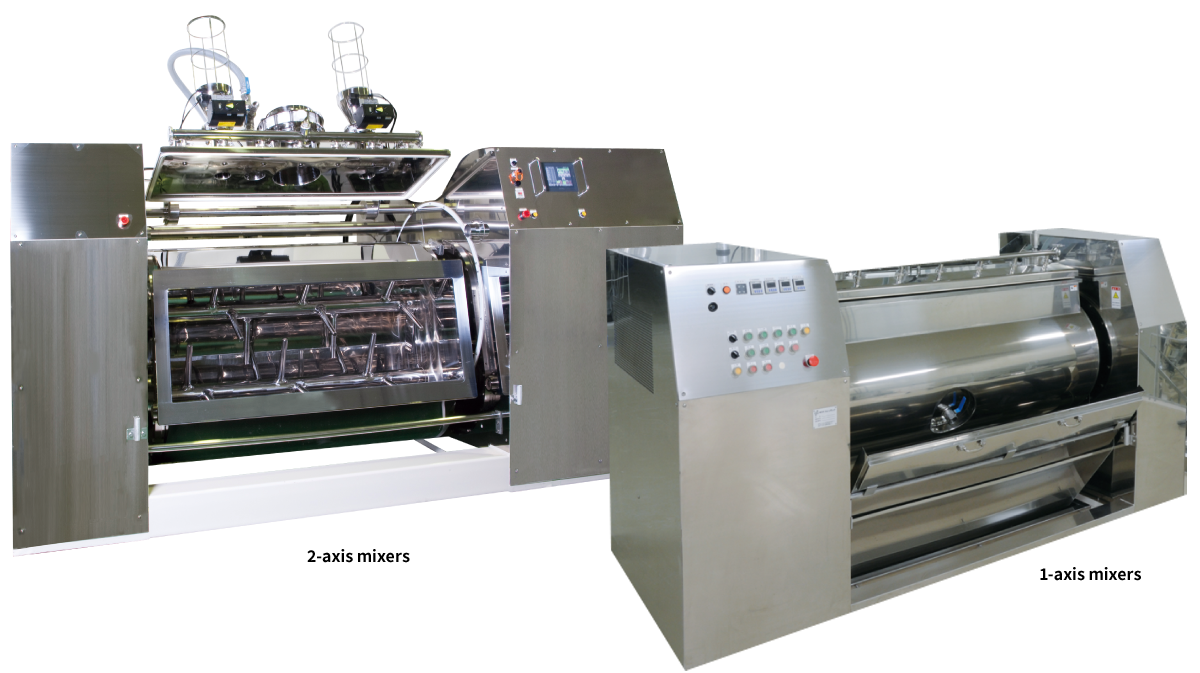

Vacuum Mixer

The range includes standard 1-axis mixers and high-mixing-efficiency 2-axis mixers.

Main Features

(1) 2-speed automatic transmission as a standard feature allows automatic control of the mixing speed.
※ The VM150 incorporates a 3-speed automatic transmission.
(2) Easy washing allowing rapid product changeover (approximately 10 minutes).
(Black soba ←→ Chinese noodles / Soba ←→ Udon)
(3) Extremely hygienic with fully stainless-steel structure.

Product Specifications

VM-5 VM-13 VM-25 VM-50 VM-75 VM-100 VM-125
Capacity(bags of flour) 5kg 1/2bags 1bags 2bags 3bags 4bags 5bags
Rating(kw) Unit 0.75 1.5 1.5 5.5 7.5 11 15
Vacuum pump 0.75 1.5 1.5 1.5 2.2 2.2 3.7
Material SUS304
VM-150 VM-75W
(2-axis)
VM-100W
(2-axis)
VM-125W
(2-axis)
VM-150W
(2-axis)
VM-200W
(2-axis)
Capacity(bags of flour) 6bags 3bags 4bags 5bags 6bags 8bags
Rating(kw) Unit 15 7.5 11 15 15 18.5
Vacuum pump 3.7 2.2 3.7 3.7 3.7 5.5
Material SUS304

External Dimensional Diagram
